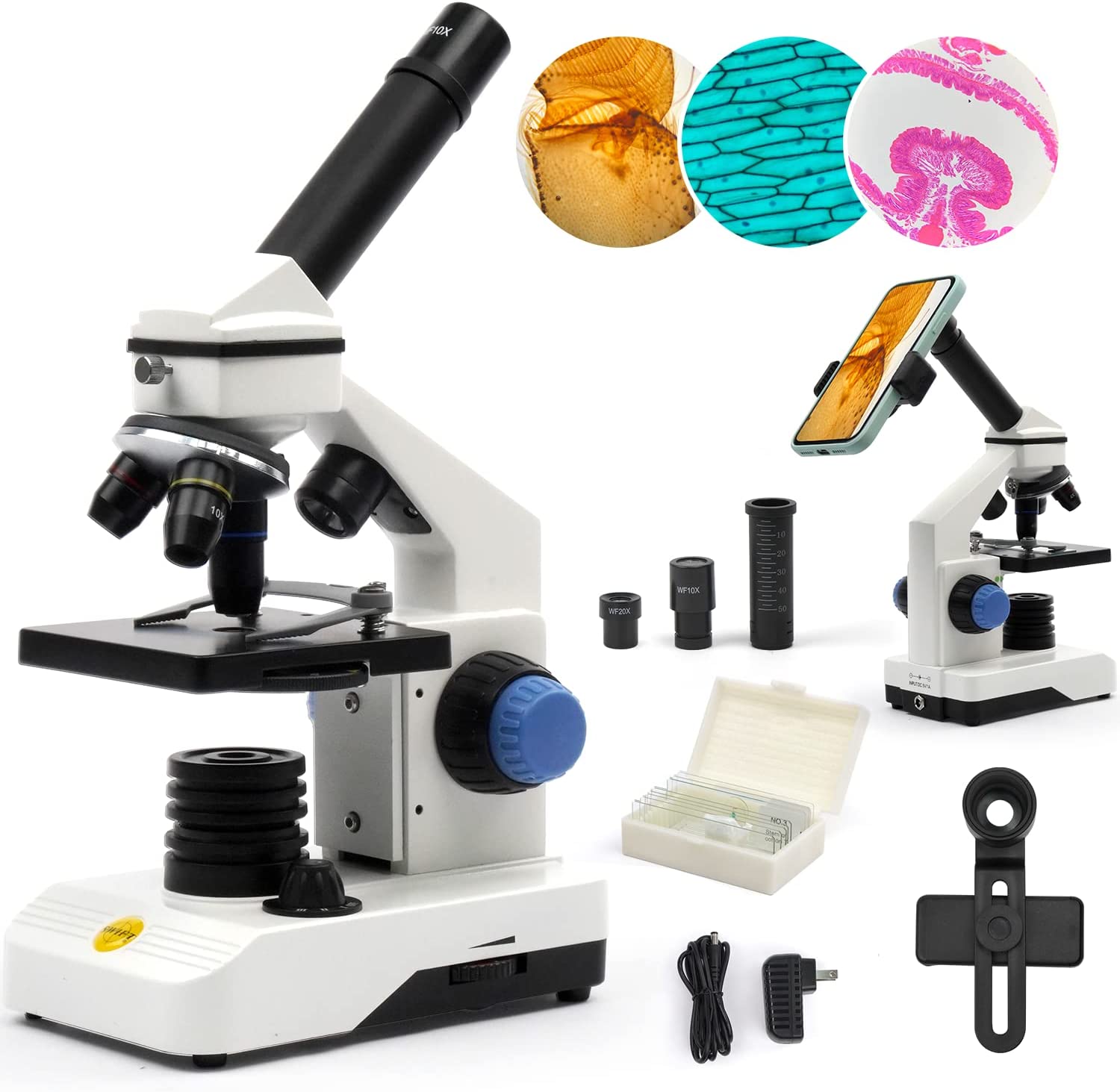

SWIFT Monocular Microscope 80X-2000X Kit with All Metal Body Microscope, Carrying Box for School Education Laboratory

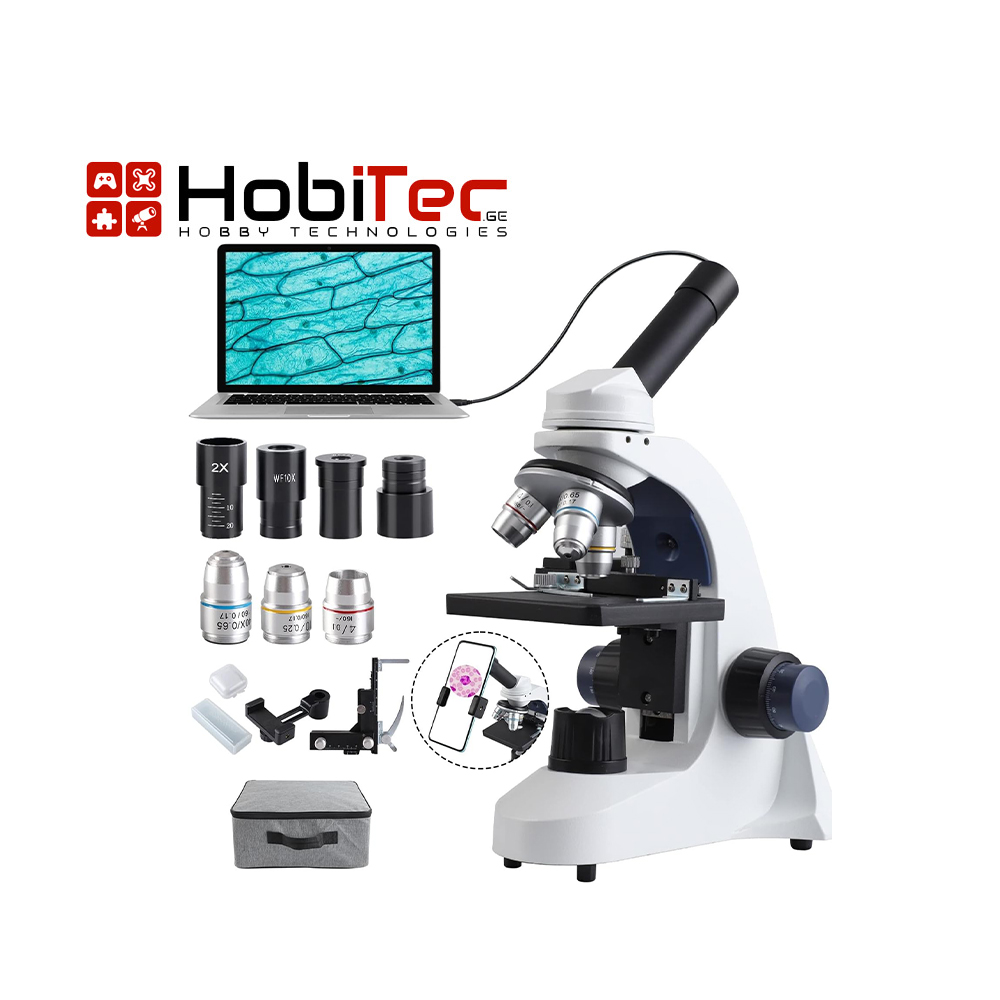

Compound Microscope for Laboratory, 40X-2000X Magnification, Microscopes with 1.3 MP USB Eyepiece Camera, for Laboratory Home and Education
10“ Digital Microscope with 11 Inch Stand – 1200X Microscope with Screen, 12MP Resolution, 10″ IPS TV/Windows/Mac Compatible
SWIFT
0 out of 5
( There are no reviews yet. )

499.00 ₾

Our microscopes are equipped with two wide-field eyepieces (10X + 25X), a customize 2X barlow lens, with achromatic objective lens (4X, 10X, 40X), provides 12 magnifications of 40 /100 /400 /100 /250 /1000 /80 / 200/ 800/ 200/ 500/ 2000X.

When using for the first time, use low magnification make it easier to focus and see a more complete contour. after focusing, observe at a higher magnification.

You can use the phone mount adapter we provide to take pictures / videos of your observations and share them with your friends and family.

OPERATIONAL INSTRUCTIONS

  • Step1: Connect the microscope to a power source. you can use the AC adapter, or put in two AA batteries (not included).
  • Step2: Mount the specimen on the stage. but before that, make sure your specimen is adequately protected by placing a coverslip on top of it.
  • Step3: Rotate the objective lens, you can choose 4x, 10x and 40x (recommended to start with 4x).
  • Step4: Use the metal clips to keep the slides in place. then move to ensures that the specimen is centered, just below the objective.
  • Step5: Look into the eyepiece and focus, at first turn the coarse adjustment knob to focus. Do not let the slider touch the objective.
  • Step6: Adjust the light source. the upper and lower light sources can be turned on to adjust the lighting brightness. you may not need too much brightness at low magnifications.
  • Step7: Look into the eyepiece and, as the view is nearly clear, slowly turn the fine-adjustment knob until you get a clearer image of the sample.
  • Step8: Mount your phone to the ocular and take photos/videos, you can switch to higher magnification and focus again.
  • Step9: Change specimen to observe, we come with many different prepared slides, you can also make your own samples (leaves, blood, sperm, dog poop, etc.)
  • Step10: Share with your family, kids and friends leave precious memories.

HOW TO CLEAN THE MICROSCOPE

  • Wipe method:

first remove the dust on the lens surface with a cleaning cloth or a blower. then use a clean flannel to make a spiral unidirectional motion from the center of the lens to the edge. after wiping once, change the flannel and wipe it again until it is clean.

If there are oil stains, dirt or fingerprints on the lens that cannot be wiped off, you can use a willow branch wrapped in absorbent cotton, dipped in a small amount of alcohol and ether mixture (80% alcohol, 20% ether) to wipe.

The surface of the lens has a layer of violet-blue light-transmitting film, it’s normal and do not wipe it off by mistake.

  • Wipe Range:

eyepieces and condensers are allowed to be disassembled for wiping. due to the complex structure of the objective lens, special instruments are needed to calibrate it to restore the original accuracy, so it is strictly forbidden to disassemble and wipe.

Availability: არ არის მარაგში SKU: swift2000X Categories: , Tags: ,

Description

Swift Monocular Microscope Kit for Kids Students Beginners,80X-2000X STEM Kit with All Metal Body Microscope, Carrying Box for School Laboratory Home Education

Product Description

1

Product Description

The Swift Biological Microscope Kit is an excellent STEM science kit for students of all ages! It’s equipped with expanded accessory kit that allows you to begin exploring the world at once.

  • 45° inclined ocular tube with 360° rotatable head lets you observe comfortably and share view with your friends easily. Dual light design allows you to view both highly-magnified translucent specimens like cells and solid objects like insects.
  • The microscope uses premium glass objective lenses of 4X, 10X, 40X and wide-field 10X/25X eyepiece, offering crisp and clear images. Plus pre-installed 2X additional lens, its magnification range extends from 80X to 2000X providing 5 levels of magnifications. Coarse focusing & fine focusing ensures precise focus adjustment, particularly under high magnification. 6-Hole disc diaphragm offers 3 color filters and various aperture sizes for diverse observation requirements.
  • The innovative Quick Start Guide helps beginners to quickly get sharp images by easily matching colors of objective color ring, disc diaphragm wheel and brightness control wheel. The microscope is also marked with focus guide points to assist you in focusing fast.
  • Die-cast metal body ensures long-term usage. Equipped with “one-touch” spring-loaded stage clips, which is easy to place a slide. The microscope can both work with batteries & power adapter, which makes it possible to observe specimens in the open air. Spare bulb is also included in the kit for replacement.
  • The kit also includes prepared slides & blank slides, practical tools like tweezers, pipette, materials for hatching brine shrimp and a free smartphone holder used for photomicrographing. Moreover, it’s equipped with a sturdy ABS case which is easy to for you carry outside and transport.



1

1

1

1

Wide Field Eyepiece

Two wide-angle eyepieces(WF10X/WF25X) is made of full-optical glass lens, with metallic lens body. The main function of the eyepiece is to re-enlarge the real image obtained by the objective lens, thereby forming a clear virtual image at the clear viewing distance

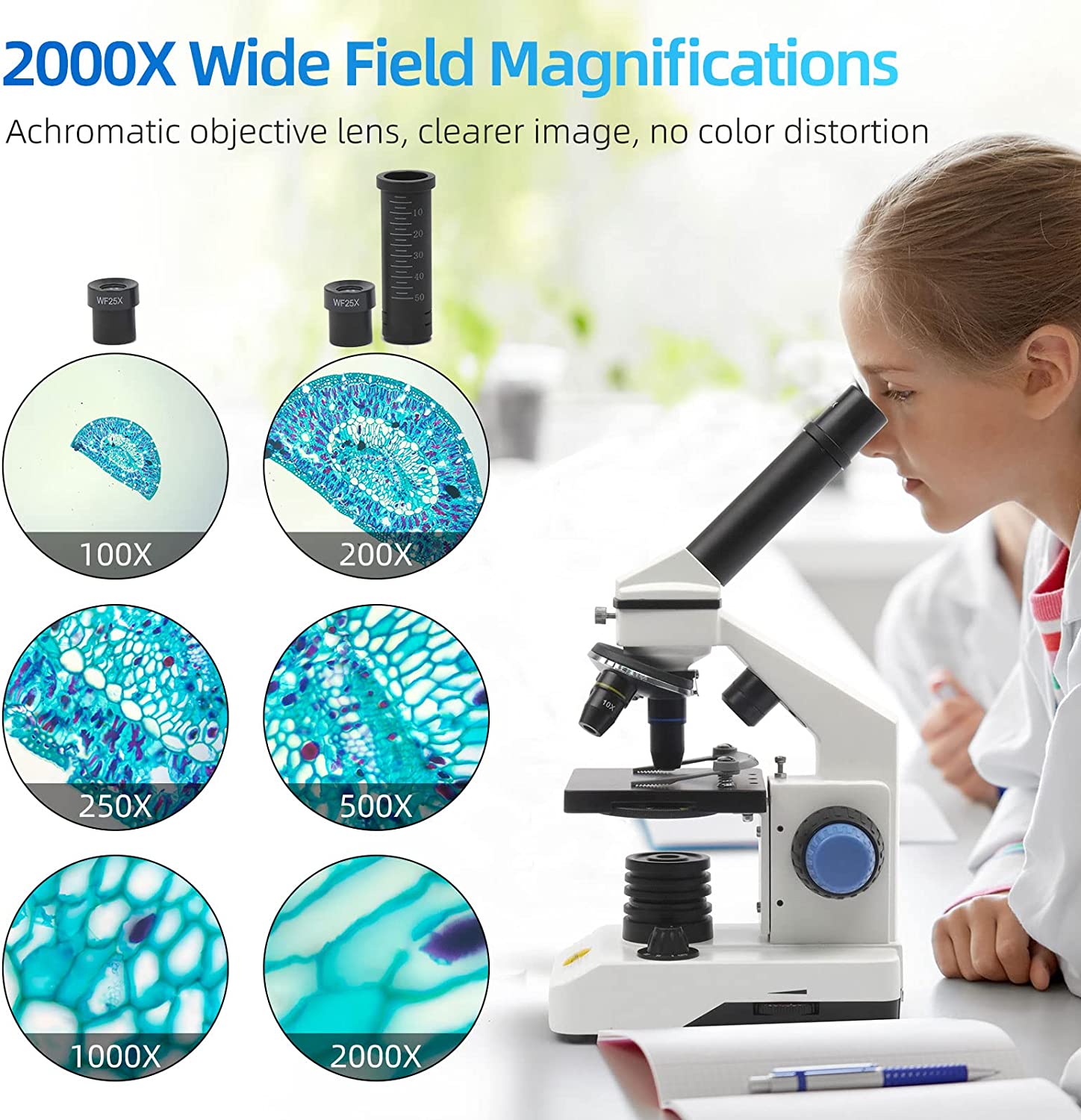

High Magnification

With a high performance objective lens 4X, 10X, and 40X, you can magnify up to 2000x magnification when using a 2X barlow lens.3 kinds of objective lens freely switch, easy to adjust, with card rotation free switching multiple

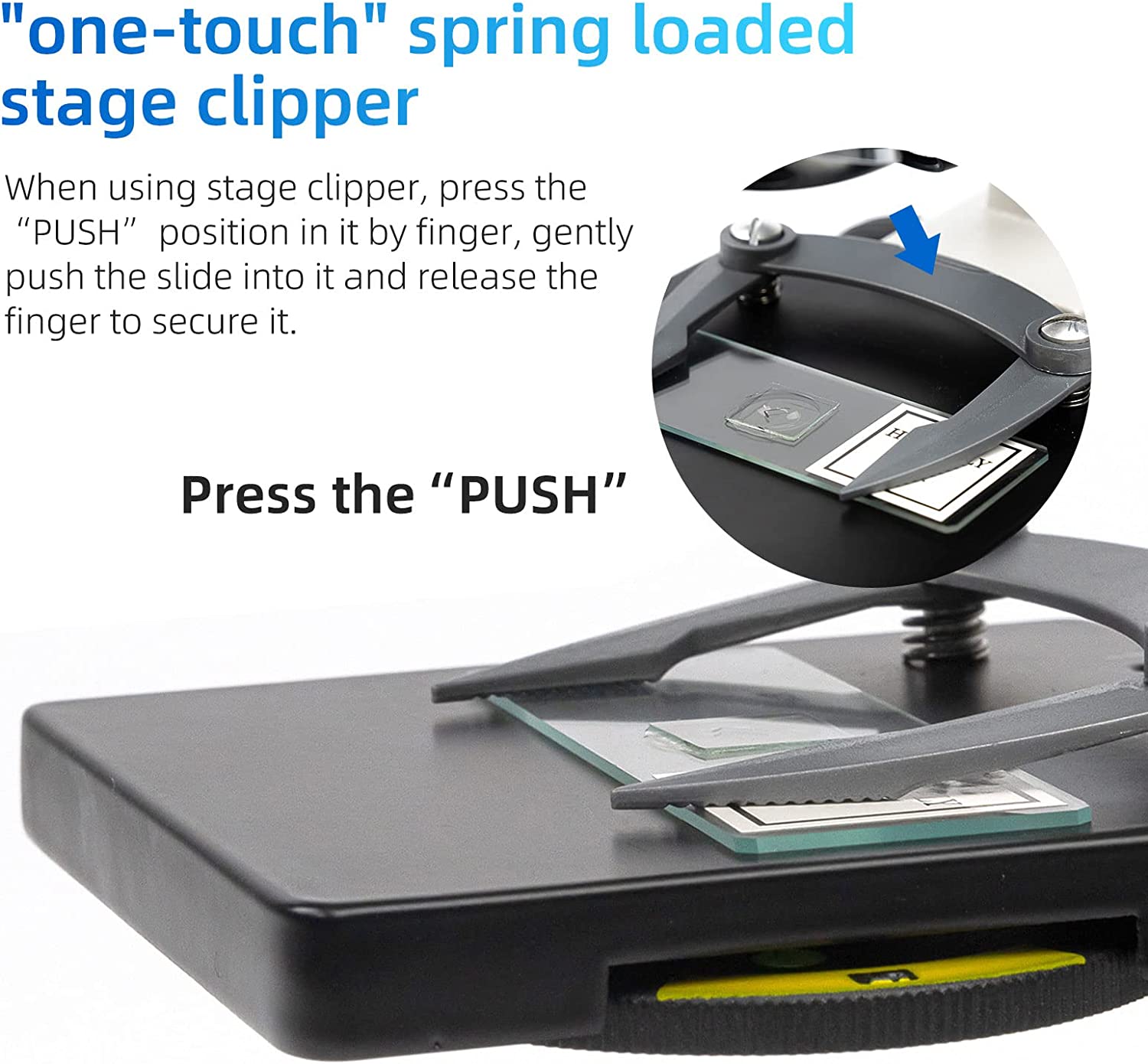

“One-touch” Stage Clipper

Equipped with “one-touch” spring-loaded stage clips, which is easy to place a slide

1

1

1

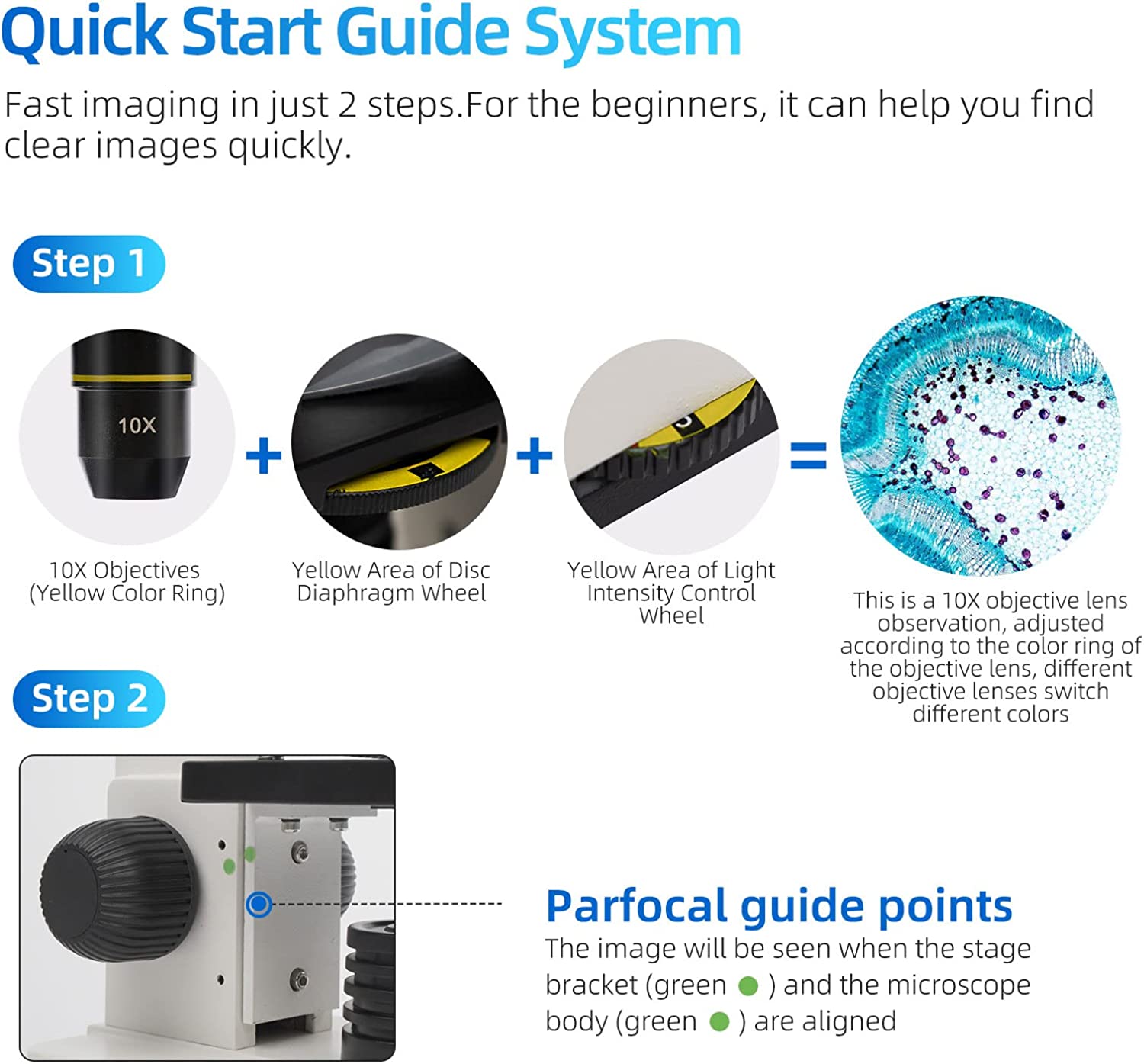

Quick Start Guide System

The innovative Quick Start Guide helps beginners to quickly get sharp images by easily matching colors of objective color ring, disc diaphragm wheel and brightness control wheel. The microscope is also marked with focus guide points to assist you in focusing fast

Package Included

The kit also includes prepared slides & blank slides, practical tools like tweezers, pipette, materials for hatching brine shrimp. Moreover, it’s equipped with a sturdy ABS case which is easy to for you carry outside and transport

Durable Smartphone Holder

It comes with a smartphone holder. So that you can take picture or a video ,to share with your friends, classmates, families or collect them. It’s great
1

1

What Comes in the Box?

• SS121-25-PPA microscope*1

• Wide-field 10X eyepiece*1

• Wide-field 25X eyepiece*1

• 2X additional lens*1

• Smartphone adapter*1

  • STEM science kit
  • Power cord *1
  • Power adapter*1
  • Spare bulb*1
  • Dust cover*1
  • User manual*1

Optics System

  • 1 Wide-field 10X Eyepiece
  • 1 Wide-field 25X Eyepiece
  • 1 Barlow lens 2X
  • 3 Objective lenses in a revolving nosepiece: 4X, 10X, and 40X
  • Magnification levels: 80X, 200X, 800X, 500X, 2000X.



  • 45 degree inclined, 360 degree rotating monocular head
  • Fixed stage with “one-touch” spring-loaded stage clips
  • Coaxial coarse and fine adjustment
  • Metal base and body

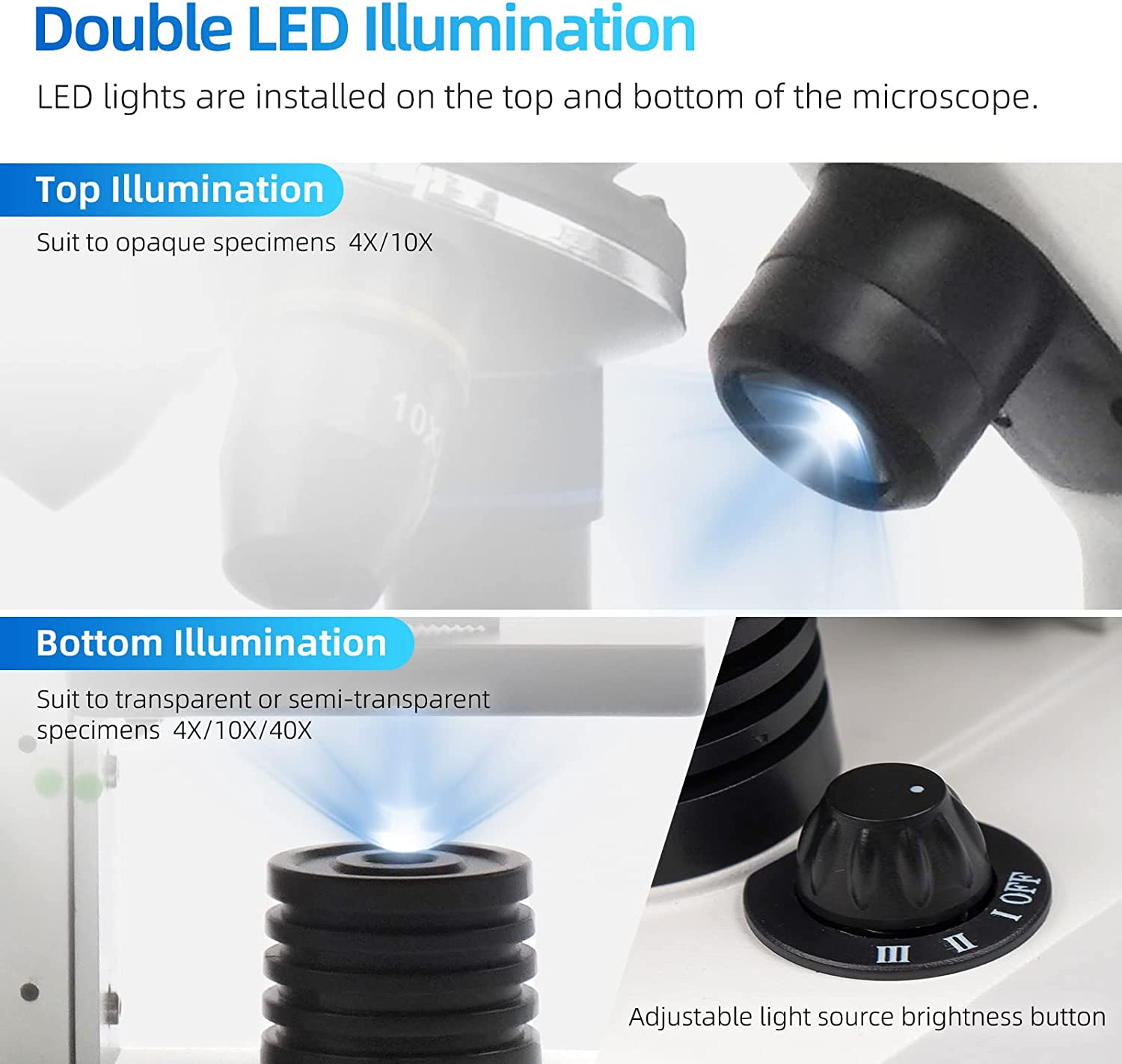

  • Upper and bottom LED Illuminations 0.5W
1

Brand

SWIFT

Reviews

There are no reviews yet.

Be the first to review “SWIFT Monocular Microscope 80X-2000X Kit with All Metal Body Microscope, Carrying Box for School Education Laboratory”
